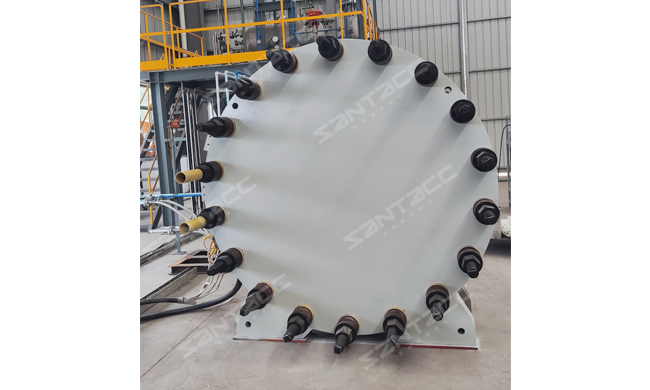

● Electrolyzer System: The main site for the electrolyzed water reaction, which can efficiently and rapidly electrolyze water into hydrogen and oxygen.

Hydrogen production capacity: 10-1500 (Nm³/h)

Operating pressure: 1.6-3.2 (MPa)

DC current: 1600-10800 (A)

DC voltage: 90-700 (V)

DC energy consumption: ≤4.2 (kWh/Nm³H₂)

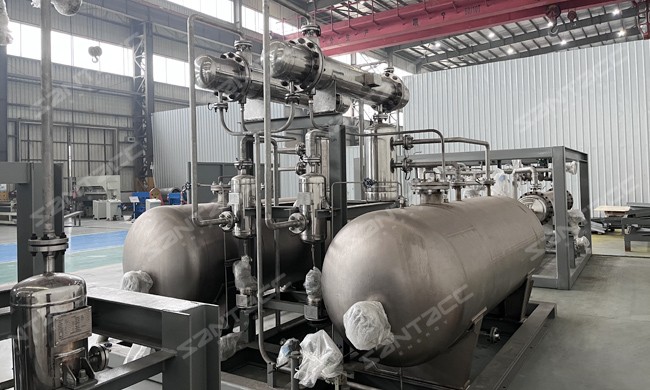

● Gas-Liquid Separation System: Primarily used for separating hydrogen and oxygen generated by the electrolyzer, and also functions for washing and cooling. It enables the preliminary separation of the gas-liquid mixture produced by the electrolyzer reaction within this system, obtaining gases with relatively high purity while reducing the pressure of subsequent cooling and gas treatment processes.

Hydrogen processing capacity: 10-5000 (Nm³/h)

Oxygen processing capacity: 5-2500 (Nm³/h)

Hydrogen separation purity: ≥99.8%

Oxygen separation purity: ≥98.5%

Cooling water consumption: 5-350 (t/h)

Instrument air consumption: 3-8 (Nm³/h)

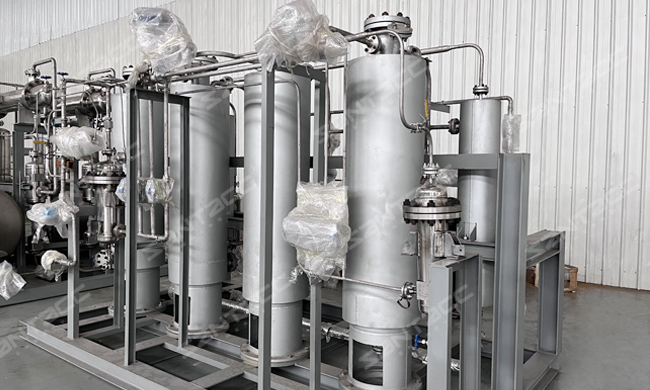

● Hydrogen Purification System: Used for further dehydrating and purifying the crude hydrogen separated from the electrolyzer, to achieve a purity of over 99.995%.

Hydrogen processing capacity: 10-8000 (Nm³/h)

Operating pressure: 1.6-3.2 (MPa)

Deoxygenation temperature: 80-100 (℃)

Drying temperature: ≤25 (℃)

Regeneration temperature: ≥250 (℃)

Hydrogen separation purity: ≥99.999%

Cooling water consumption: 1.5-200 (t/h)

Heating power consumption: 3-220 (KW)

Instrument air consumption: 3-9 (Nm³/h)

Crude Hydrogen: Refers to hydrogen with low purity (usually containing impurities such as water vapor, oxygen, etc.) just separated from the electrolyzer, which needs further purification to meet industrial application requirements.
